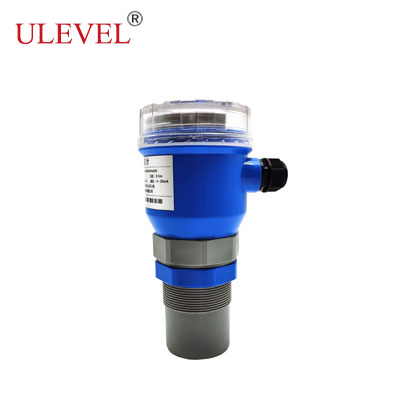

UVUS-U Integrated Ultrasonic Level Meter
Specifications
Range: 5m~30m
Accuracy: ±0.25%
Dead zone: ≤ 0.25m
Resolution: 1mm
Beam angle: 10°
Power: 12~24V DC/220V AC ,?1.5W
Output: 4~20mA, 0~20 mA, 0~5V, 0~10V, RS-485(Modbus), Relay, Wireless GPRS, GPS
Process fitting: Thread, Flange
Working pressure: 0~1.0MPa
Temperature compensation: -20~80?
Protection rating: IP67
Size diagram
Overview of Integrated Ultrasonic Level Meter
The transducer in ultrasonic level meter sends out high frequency ultrasonic pulses. When a pulse hits liquid surface, it is reflected back. The reflected ultrasonic wave is received by the transducer and converted into an electronic signal. The time interval between transmitted ultrasonic pulse and received ultrasonic pulse is directly proportional to the distance between transducer and liquid surface.

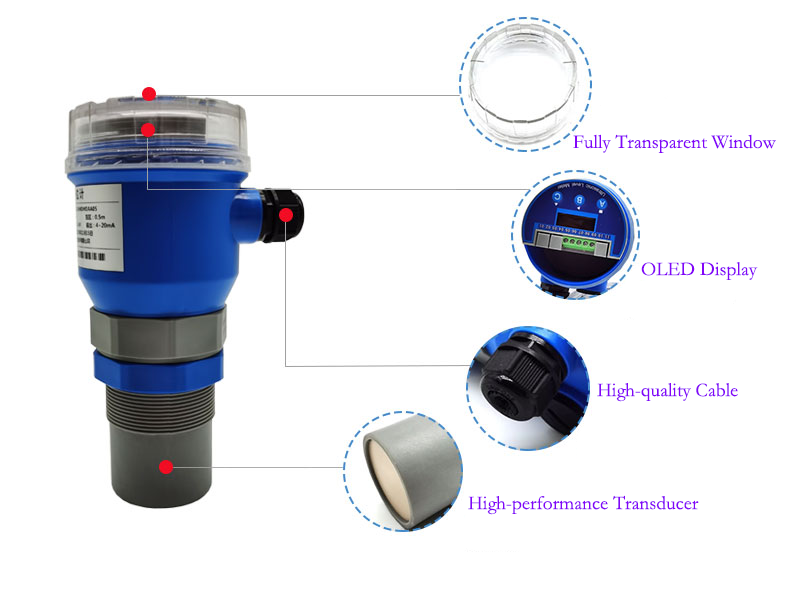

Advantage of UVUS-U Integrated Ultrasonic Level Meter:

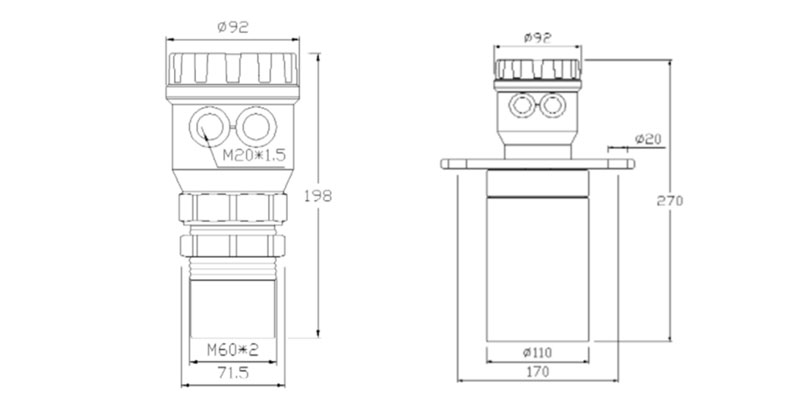

Size of UVUS-U Integrated Ultrasonic Level Meter:

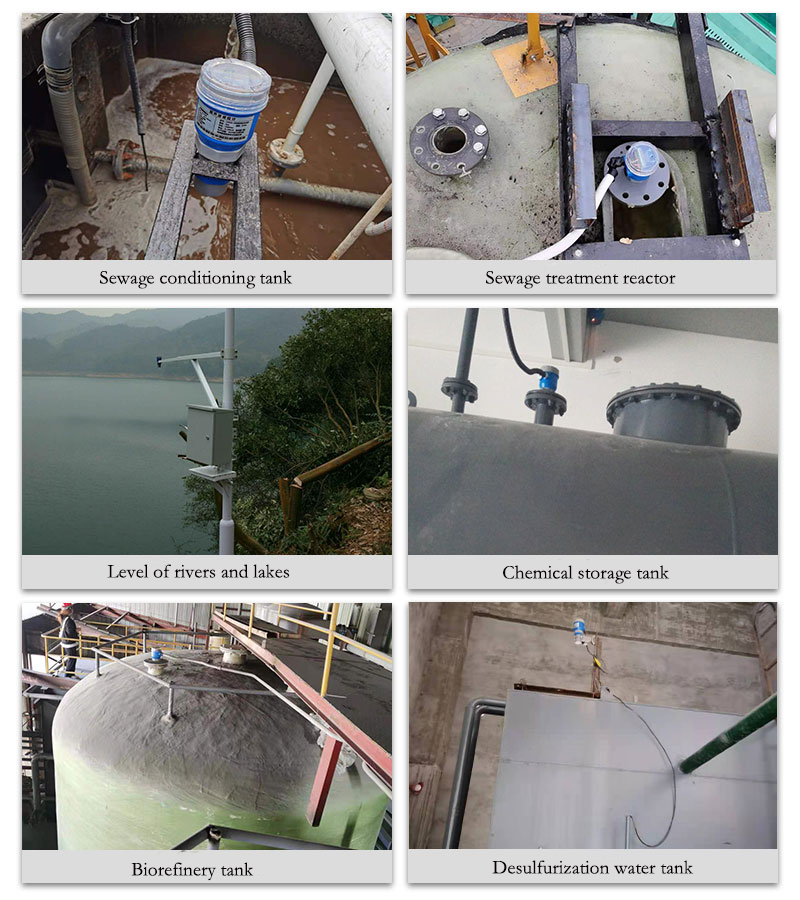

Application case of UVUS-U Integrated Ultrasonic Level Meter:
