Product Display

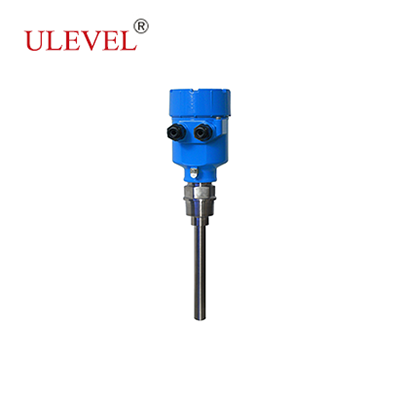

UVVR-A Standard Vibrating Rod Level Switch
Specifications
Insertion depth: 160mm
Density: ≥0.02g/cm3
Power: 20?250V AC/DC , 10?36VDC
Output: DPDT, 8mA/16mA
Process fitting: Thread, Flange
Process temperature: -50??250?
Process pressure:-0.1?1.6MPa
Ambient temperature: -40?80?
Protection rating: IP66/67
Vibrating rod: 304, 316L
Size diagram
Overview Of Standard Tuning Fork Level Switch
UVVF Tuning Fork Level Switch probe is based on a tuning fork harmonic resonance. It utilizes piezoelectric devices to drive the fork to vibrate and detect the changes of vibration. The fork vibrates in resonant frequency when it does not contact with medium. Once the fork comes in contact with medium, vibrating amplitude of the fork will decrease substantially. Output from the detecting piezoelectric device will decrease accordingly. An integrated circuit is designed to analyze the amount of decrease and output a switch signal.
