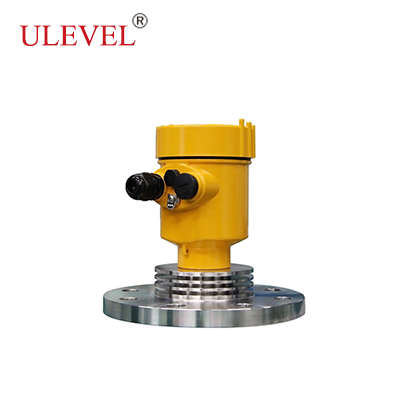

120GHZ High Temperature FMCW Radar Level MeterUVRL-30
Specifications
Specifications
Range: 0.1?35m
Accuracy: ±2mm
Transmission frequency: 120GHZ
Antenna size: 78mm Lens antenna
Antenna Material: PTFE
Process temperature: -40?200?
Process pressure: -0.1?2.5MPa
Process fitting: Flange≥DN80
External Housing: Aluminum
Beam angle: 3°
Power: DC 24V, AC 220V
Output: 4-20mA/HART/Modbus-RS485

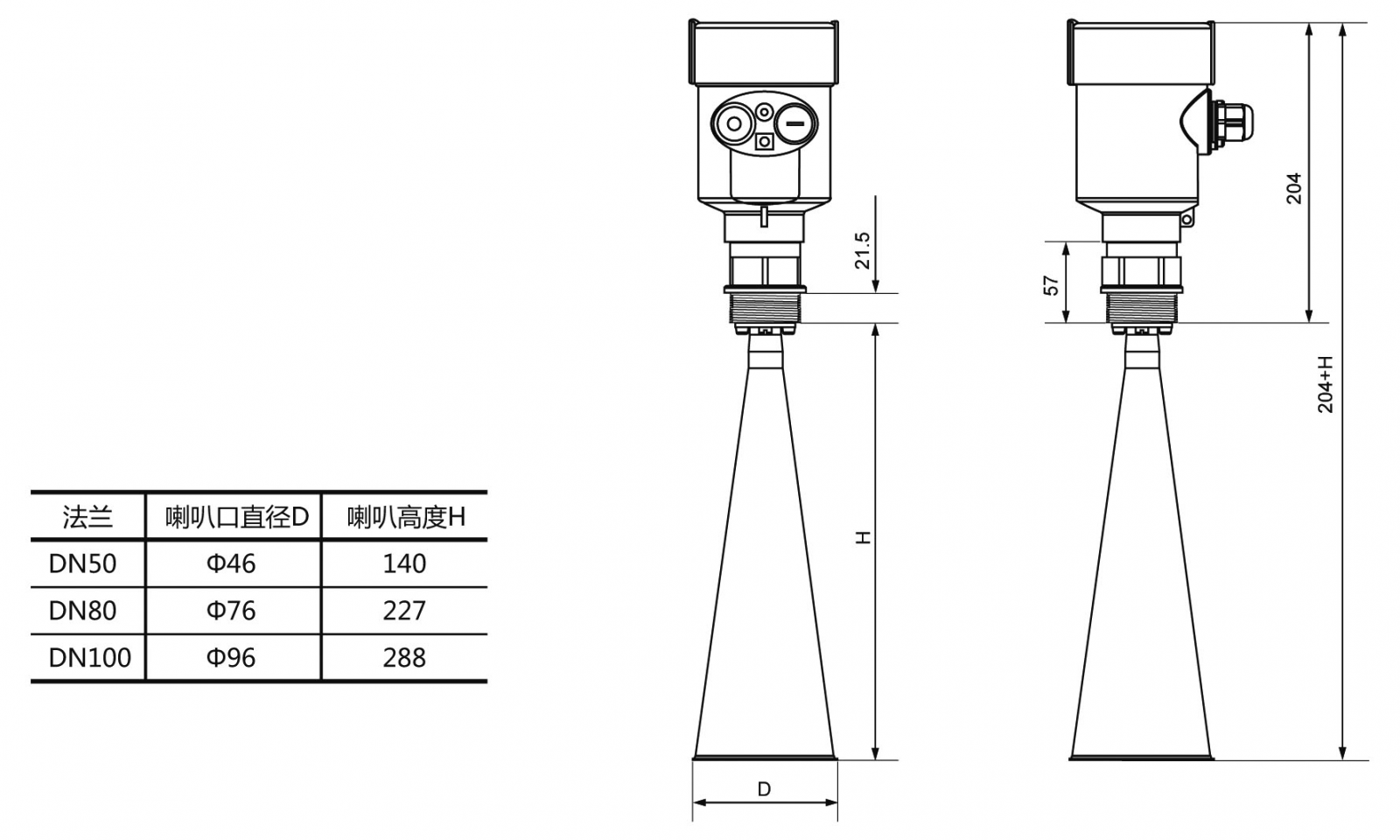

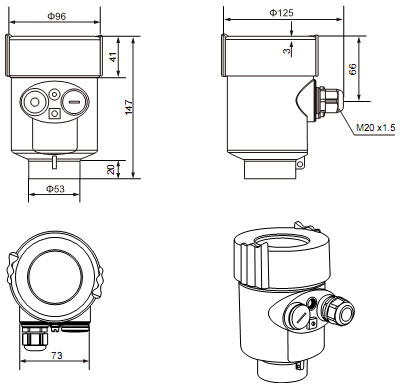

Size diagram
