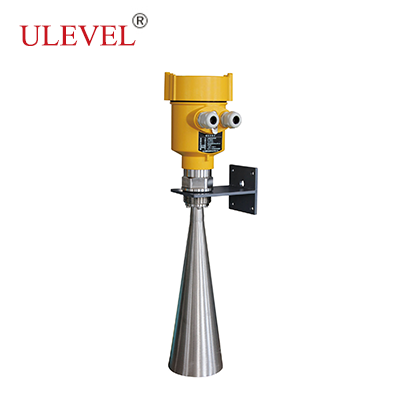

UVRL-3X Hydrological Radar Level Meter
Specifications
Application: Rivers,reservoirs,open canal and lakes
Range: (0?10)m,(0?30)m,(0?70)m
Range: (0?10)m,(0?30)m,(0?70)m
Accuracy: ±3mm?±5mm?±10mm
Transmission frequency: 26GHz
Process temperature: (-40?100)?
Process pressure: Standard pressure
Process fitting: Thread?Flange
Housing: Aluminum
Protection rating: IP67/IP65
Power: DC 24V, AC 220V
Output: (4-20)mA+HART?Modbus RS485
Dispay: LCD
Explosion proof: Exia IIC T6
Housing material: Cast aluminum/304 stainless steel
Size diagram
Product Size-Range of 30m
Product Size-Range of 70m
Bracket size
Aluminum Housing Size
