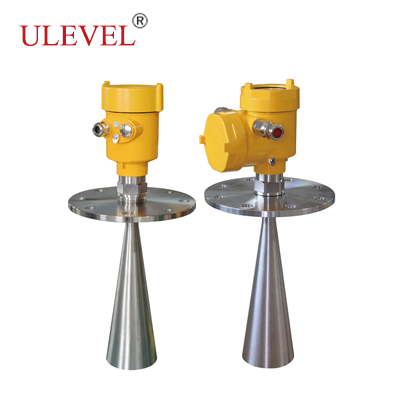

UVRL-32 Horn Antenna Radar Level Meter
Specifications
Application: Solid materials, strong dust, easy to crystallize,
and condensation occasions
Range: (0?70)m
Accuracy: ±15mm
Transmission frequency: 26GHz
Process temperature: (-40?230)?
Process pressure: Threaded flanges(-0.1?4.0)MPa
Universal flange(-0.1?-0.3)MPa
Process fitting: Threads, Threaded flanges,Universal flange
Protection rating: IP67
Power: DC 24V, AC 220V
Output: (4-20)mA+HART?Modbus RS485
Display: LCD
Explosion-proof: Exia IIC T6
Housing material: Single cavity or double cavity
cast aluminum or 304 stainless steel
Size diagram
Product Size
.png)
Flange Size
Aluminum Housing Size
