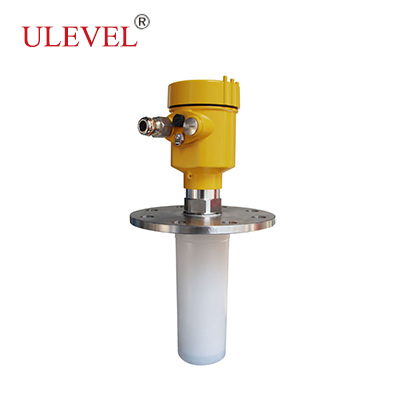

UVRL-31 Horn Wrapped With PTFE Antenna Radar Level Meter
Specifications
Application: Corrosive liquid, steam, volatile liquid
Range: (0?20)m
Accuracy: ±5mm
Transmission frequency: 26GHz
Antenna type: Horn Wrapped With PTFE Antenna
Process temperature: (-40?230)?
Process pressure: -0.1?2.0MPa
Process fitting: Flange,Threads
Protection rating: IP67
Power: DC 24V, AC 220V
Output: (4-20)mA+HART?Modbus RS485
Display: LCD
Explosion-proof: Exia IIC T6
Housing material: Single cavity or double cavity
cast aluminum or 304 stainless steel

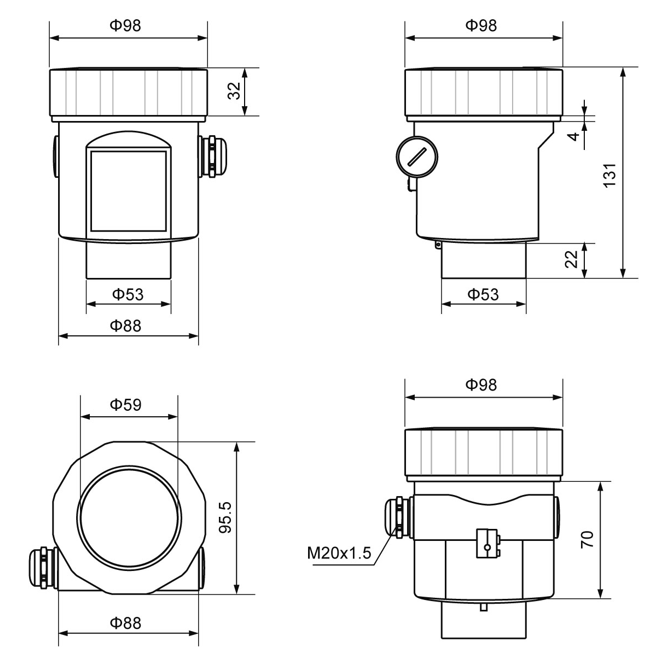

Size diagram
Product Size
Flange Size
Aluminum Housing Size
.png)
