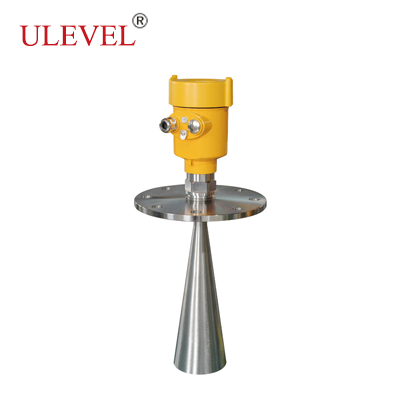

UVRL-30 Horn Antenna Radar Level Meter
Specifications
Application: Slightly corrosive liquid or high temperature
and high pressure container.
Range: (0?30)m
Accuracy: ±3mm?±5mm
Transmission frequency: 26GHz
Process fitting: Thread, Flange
Process temperature: (-40?250)?
Process pressure: (-0.1?4.0)MPa
Protection rating: IP67
Power: DC 24V, AC 220V
Output: (4-20)mA+HART?Modbus RS485
Display: LCD
Housing material: Single cavity or double cavity
cast aluminum or 304 stainless steel

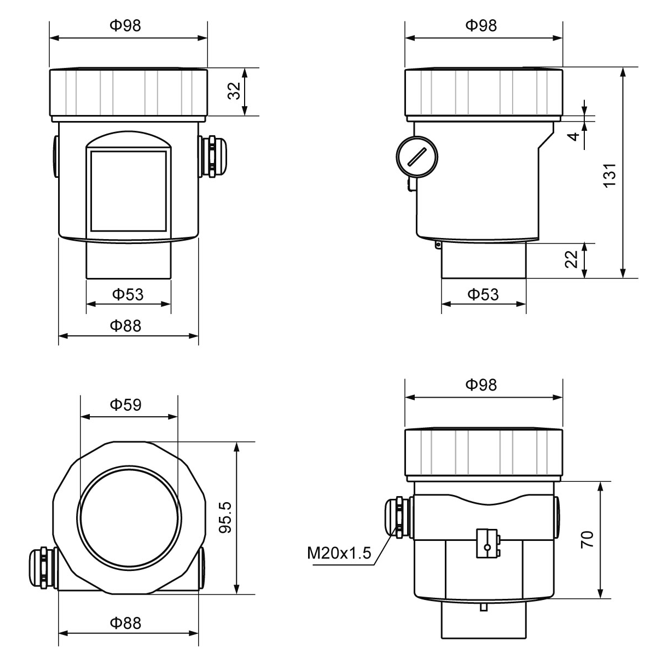

Size diagram

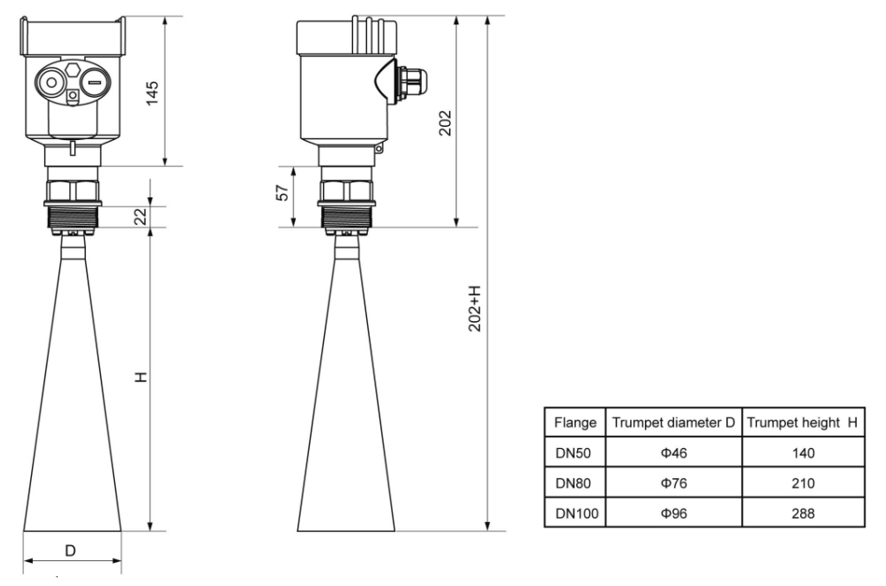

Product Size
.png)

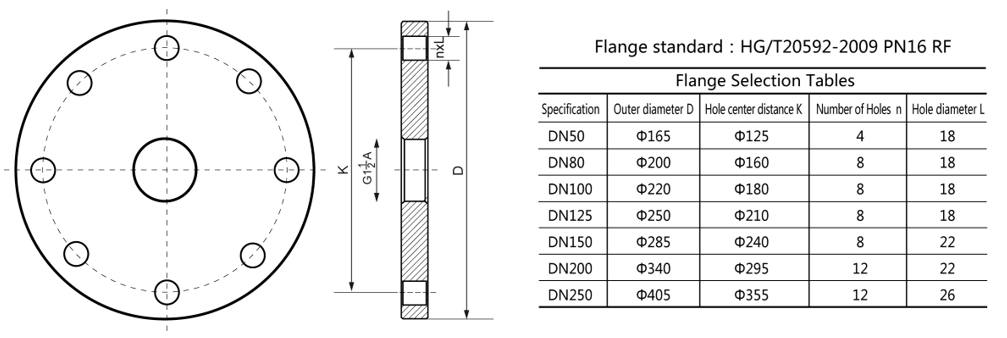

Flange Size
