UVPM-A1 Integrated Submersible Level Meter With DisplayUniversal Integrated Type
Specifications
Range: 0?3m
Accuracy: 0.25%FS
Stability error: ≤0.1%FS
Pressure overload?150%FS
Protection rating: IP68
Power: 12?30V DC
Process temperature: -10??60?
Ambient temperature: -20??70?
Probe material ?304 / 316L
Diaphragm material: 316L
Output: 4-20mA, Modbus-RS485
Sealing ring: PTFE or rubber
Size diagram
Overview of Integrated Submersible Level Meter With Display
This product uses a high-performance pressure sensor as a measuring element. Accurately measure the hydrostatic pressure that is proportional to the depth of the liquid level through a pressure sensor, It is converted into standard signal (current, voltage, digital) output by a dedicated signal conditioning circuit. Establish a linear corresponding relationship between the output signal and the liquid depth (height) to achieve accurate measurement of the liquid depth. This product is widely used in liquid level measurement and control in the fields of petroleum, chemical industry, power plants, urban water supply, and water conservancy and hydrological surveying.

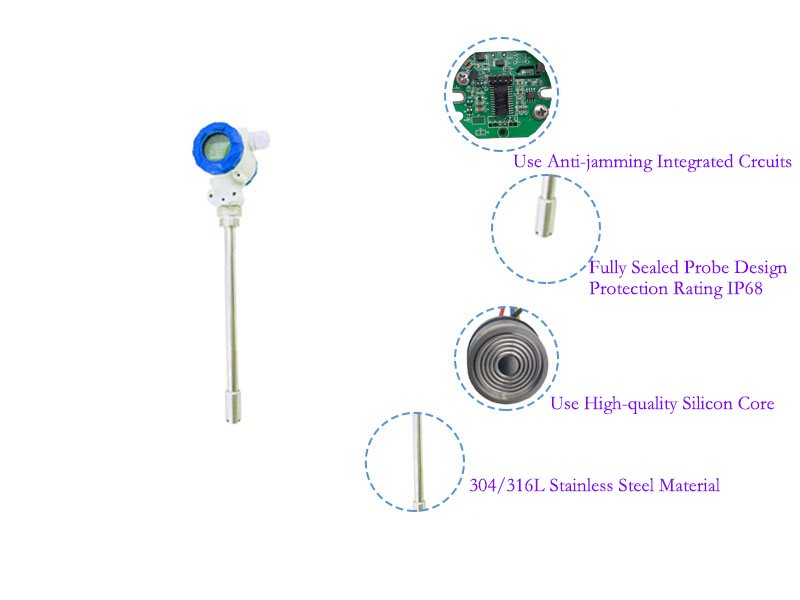

Advantage of UVPM-A1 Integrated Submersible Level Meter With Display

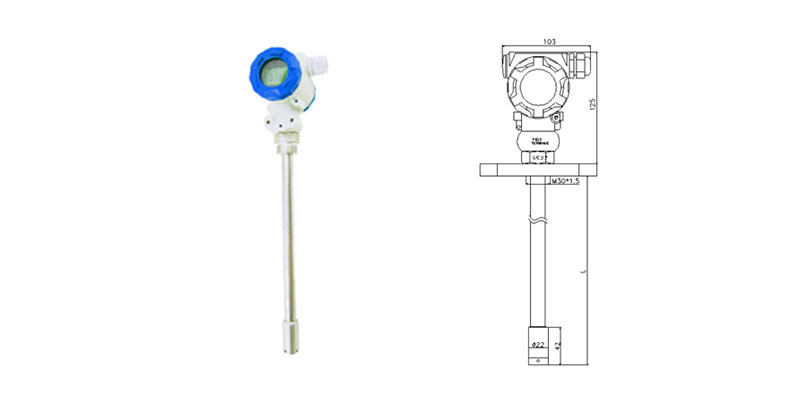

Size of UVPM-A1 Integrated Submersible Level Meter With Display:
